Insulating Refractory Products Alumina Carton Zircon Refractory Bearing Sliding Plates
-
Parameters
-
Comments

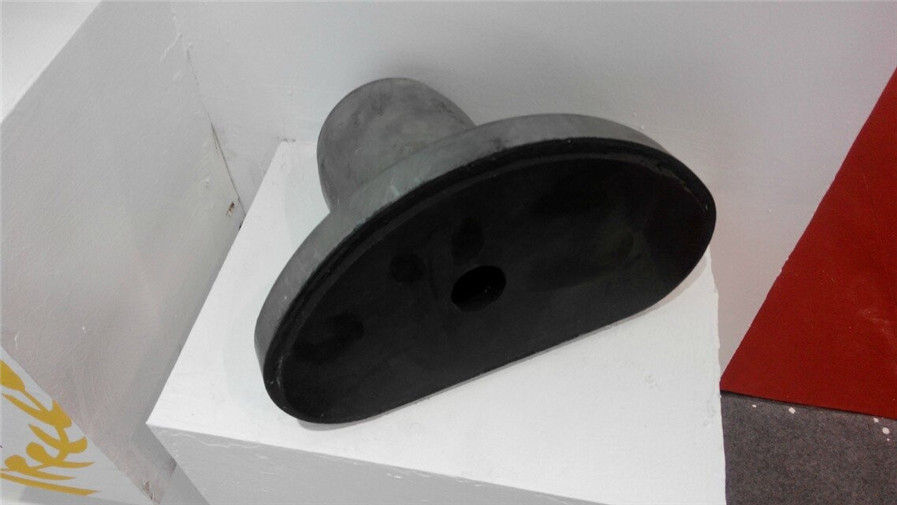

Insulating Refractory Products Alumina Carton Zircon Refractory Bearing Sliding Plates
Description:
sliding gates is divided into upper and lower slide gates, which made Al2O3, C as main raw materials. The
Aluminacarbon slide gates are characterized by high strength, erosion resistance and good thermal shock
resistance. They are optimum products for large and middle ladle, which are characterized by good
insulating ability and with long life span. The products can meet needs of different casting condition.
Feature:
1. Including upper and lower slide gate
2. Ladle applied
3. Can meet needs of different casting condition
4. High strength
5. Erosion resistance
6. Good thermal shocking resistance
7. Good insulating bility
8. Durable
Applications:
converters, EAFs, ladles and refining furnaces.
Specifications:
|
Name |
Alumina-carbon slide gate |
|||
|
Brand |
LTH-1 |
LTH-2 |
LTH-3 |
|
|
Chemical composition (%,≥) |
Al2O3 |
75 |
80 |
88 |
|
C |
6 |
8 |
2 |
|
|
Apparent porosity (g/cm3,≥) |
9 |
7 |
7 |
|
|
Bulk density/Mpa (≥) |
2.7 |
2.9 |
2.95 |
|
|
Crushing strength ((1500°C) %) |
50 |
95 |
100 |
|
|
Hot modulus of rupture (1400°C embedded in carbon) (Mpa≥) |
8 |
10 |
12 |
|
|
Application |
Used for once in 20-30 ton ladle |
|||
|
Used for two times in 30-80 ton ladle |
||||
|
Used for three times in 30-100 ton ladle |
||||
